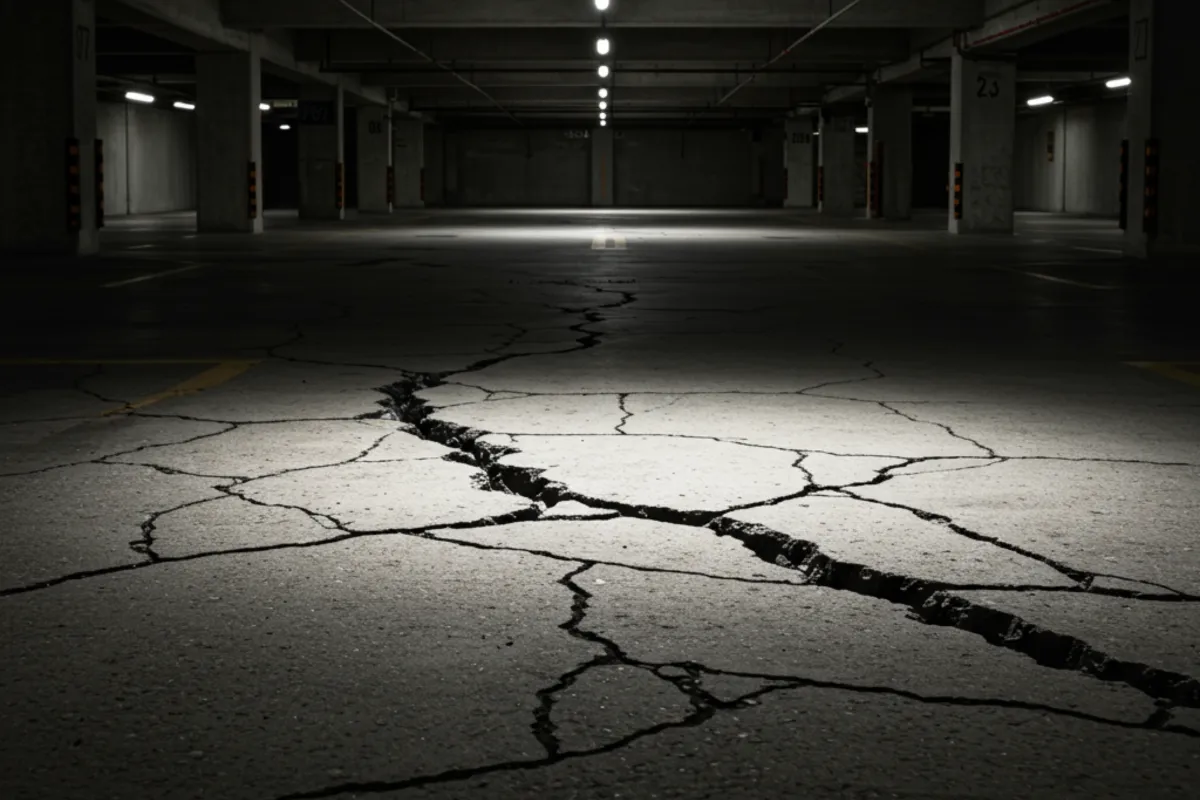

Multi-level parkades, essential for urban infrastructure, face unique challenges that make them particularly susceptible to cracking. One of the primary reasons lies in the heavy and fluctuating loads they must support. Unlike standard buildings, parkades endure the constant movement of vehicles, including heavy trucks, which subject concrete slabs and beams to repetitive stress cycles. This ongoing pressure can eventually exceed the material's capacity, leading to the development of cracks.
Additionally, parkades are frequently exposed to the outdoors. Rain, snow, de-icing salts, and temperature fluctuations contribute to the degradation of concrete surfaces. Over time, these environmental factors accelerate the breakdown of protective coatings and the concrete itself, making it easier for cracks to form and propagate.
The sheer size of most parkades also means there's more surface area where minor imperfections can escalate into significant structural issues. Even small flaws, if left unchecked, can allow moisture and other damaging agents to penetrate deeper, further weakening the structure.
Structural movement is another culprit. As temperatures rise and fall, concrete expands and contracts. These shifts, especially when not properly accounted for with expansion joints, can result in stress concentrations that encourage cracking. The complex design elements found in multi-level parkades—such as ramps, columns, and expansion joints—create additional stress points, increasing the risk of cracks forming in these areas.
Understanding these inherent vulnerabilities is the first step toward implementing effective concrete repair and maintenance strategies that ensure the safety and longevity of multi-level parkades.
Cracks in multi-level parkades can arise from a variety of sources, each contributing to the overall risk of structural compromise. One of the most significant factors is the relentless load stress imposed by vehicles. When concrete is repeatedly subjected to heavy weights, especially in high-traffic areas, it can develop fatigue cracks. These typically appear over time as the material weakens under cyclic loading, particularly in drive lanes and ramps.
Freeze-thaw cycles present another formidable challenge, especially in climates with harsh winters. Water infiltrates small surface imperfections in the concrete. When temperatures drop, this water freezes and expands, creating internal pressure that widens existing cracks or initiates new ones. With each subsequent thaw, the process is repeated, gradually exacerbating the damage.
Construction flaws can significantly increase the likelihood of cracking. Inadequate reinforcement, improper concrete mixes, or insufficient curing times can all compromise the material’s strength and durability. Without proper reinforcement, concrete is less able to resist tensile stresses, making it more prone to cracking under load or during temperature fluctuations.
The design and installation of expansion joints are also critical. These joints are intended to allow for the natural movement of concrete as it expands and contracts with temperature changes. If they are poorly placed or of insufficient size, the resulting stress can cause the concrete to crack instead of moving as intended.
Finally, subsurface settlement or shifting can undermine even the most robust structures. If the ground beneath a parkade shifts or settles unevenly, it can create stress points in the concrete above, leading to the development of cracks and, in severe cases, structural instability.
Recognizing the diverse causes of cracking is essential for diagnosing problems accurately and selecting the most effective concrete repair solutions.
Water leaks and environmental factors play a pivotal role in undermining the durability of concrete structures in multi-level parkades. When water seeps through cracks or faulty joints, it can quickly reach the reinforcing steel embedded within the concrete. This exposure initiates corrosion, which not only weakens the steel but also causes it to expand, exerting additional pressure on the surrounding concrete and leading to further cracking and spalling.
The problem is compounded when the infiltrating water contains chlorides, commonly found in de-icing salts used during winter months. These contaminants accelerate the corrosion process, further reducing the structural integrity of the parkade. Over time, this cycle of moisture intrusion and corrosion can result in significant and costly damage.
Freeze-thaw cycles, already discussed as a direct cause of cracking, become even more destructive in the presence of excess moisture. Each time water within the concrete freezes, it expands, pushing apart the concrete matrix and widening existing cracks. When the ice melts, it leaves voids that weaken the structure and make it more susceptible to future damage.
In addition to water, environmental factors such as ultraviolet (UV) exposure and temperature extremes can degrade the protective coatings used on concrete surfaces. As these coatings break down, the concrete becomes more vulnerable to water ingress and chemical attack.
Effective drainage systems are therefore critical in multi-level parkades. Without proper slopes, drains, and waterproofing membranes, water can pool on surfaces or seep into cracks, exacerbating all the issues mentioned above. By addressing water management and environmental exposure, property owners and managers can significantly improve the durability and lifespan of their concrete structures.
Selecting the appropriate crack repair technique is crucial for ensuring the structural integrity and longevity of multi-level parkades. The first step in any concrete repair is a thorough assessment of the type and severity of the cracks. Surface hairline cracks may require different solutions than deep, structural fractures or areas affected by active water leaks.
Epoxy injection is widely recognized as an effective method for repairing structural cracks. This approach involves injecting a high-strength epoxy resin into the crack, which bonds the concrete back together and restores its original strength. Epoxy is particularly suited for dry cracks that require structural reinforcement, such as those caused by load stress or settlement.
Polyurethane injection is often the method of choice for dealing with active leaks or cracks exposed to moisture. Unlike epoxy, polyurethane expands as it cures, allowing it to fill and seal cracks even when water is present. This flexibility makes it ideal for applications where concrete is subject to ongoing movement or where watertight sealing is essential.
Grout injection is used for repairing larger voids or stabilizing areas where significant settlement has occurred. This technique involves pumping a fluid grout into the affected area, which then hardens to provide support and prevent further movement.
No matter the chosen repair method, proper surface preparation is vital. The area must be clean, dry (unless specifically intended for wet application), and free from loose debris to ensure maximum adhesion and effectiveness of the repair material. Selecting the appropriate product—whether epoxy, polyurethane, or grout—depends on the specific conditions of the crack, as well as the desired outcome, such as restoring strength or achieving a watertight seal.
Adhering to these best practices in crack repair not only addresses existing issues but also helps prevent future deterioration, preserving the value and safety of multi-level parkades.
Proactive maintenance is key to maximizing the structural integrity and service life of multi-level parkades. Regular inspections are essential; by frequently monitoring concrete surfaces for new or growing cracks, property managers can address issues before they develop into larger, more expensive problems. Early intervention using appropriate crack repair techniques helps prevent moisture ingress and further deterioration.
Routine cleaning plays a significant role as well. Removing accumulated salts, debris, and other contaminants reduces the risk of chemical attack and corrosion of embedded reinforcement. Particular attention should be paid to high-traffic areas and locations where water tends to pool, as these are especially vulnerable to damage.
Expansion joints and drainage systems require regular maintenance to function effectively. Ensuring that joints are free from obstructions and properly sealed allows the concrete to expand and contract without cracking. Similarly, well-maintained drainage systems prevent water from pooling on surfaces or seeping into cracks, mitigating the risk of freeze-thaw damage and corrosion.
Prompt repair of minor defects is perhaps the most cost-effective strategy for preserving concrete structures. Addressing small cracks and chips before they worsen can save significant time and resources in the long run. Using high-quality repair products and following best practices ensures lasting results.
Finally, the application of protective coatings or traffic membranes provides an additional layer of defense against environmental wear and tear. These treatments help shield concrete surfaces from moisture, chemicals, and abrasion, further enhancing durability and extending the lifespan of the parkade.
By adopting a comprehensive maintenance program that incorporates these strategies, property owners and managers can safeguard their investments and ensure the ongoing safety and functionality of their multi-level parking structures.
